Building Materials particle size and shape analysis for improved product performance

Building materials are required for a wide range of construction work including carpentry, roofing, structural reinforcement, insulation, and plumbing. The particle size and particle shape of the raw materials influence quality and performance of the end product, and therefore require quality control by particle characterization. Microtrac analyzers are successfully used to determine the size and shape of various building materials.

Building materials range from naturally occurring substances such as rock, clay, sand, and wood to synthetic polymers and multiple combinations of both (composites). Concrete or mortar are for example mixtures of cement and aggregates like sand or gravel.

Why are particle properties so important for building materials?

The particle size and particle shape of raw materials are important for many reasons. The particle size distribution has various effects on the processing of building materials, for example:

Powder flow: a wide distribution or too many fines reduce flowability
Segregation: a wide distribution will lead to size segregation
Suspension rheology: fines or irregularly shaped particles increase viscosity

Problematic effects due to oversized particles

Poor quality of the final product (grains sticking out of the plaster, rough surfaces of tiles, inhomogeneous materials may break)
Changes in the “look and feel” of the final product
Changes in the flow behavior and other process parameters of the final product
Blockage of production sieves
Removal of material from the production process, and recycling (additional costs and effort)

Problematic effects due to undersized particles

Change of the “look and feel” of the final product
Dust (pollution) in the work place
Filter blockage
Changes in the flow behaviour and other process parameters of the final product

Análisis del tamaño de las partículas - Resumen de productos

Microtrac ofrece productos para todas las tecnologías destinadas al análisis granulométrico.

Resumen de productos ¡Contáctenos!

Solución Analizador de tamaño y forma de partículas CAMSIZER X2

El CAMSIZER X2 es un analizador de tamaño y forma de partículas potente y extremadamente versátil con un amplio rango de medición que combina la tecnología de cámara más avanzada con opciones de dispersión flexibles. Basado en el principio del análisis dinámico de imágenes (ISO 13322-2), el CAMSIZER X2 proporciona información precisa sobre el tamaño y la forma de las partículas de polvos, gránulos y suspensiones en un rango de medición de 0,8 μm a 8 mm.

El CAMSIZER X2 produce un flujo de partículas que se caracteriza por un sistema óptico de alta resolución. Una fuente de luz estroboscópica LED ultrabrillante y dos cámaras digitales de alta resolución logran una frecuencia de imagen de más de 300 imágenes por segundo que se evalúan en tiempo real mediante un potente software. Así, el CAMSIZER X2 captura las imágenes de cientos de miles a varios millones de partículas con la máxima precisión en tan sólo 1 a 3 minutos.

El CAMSIZER X2 proporciona una amplia selección de información sobre las partículas que permite una caracterización completa y fiable del material de la muestra. Es adecuado para su uso en la RD, así como para las tareas de rutina en el control de calidad.

Analizador de tamaño y forma de partículas CAMSIZER X2

Ejemplo 1 Sieve correlation with sand samples

In most cases the particle size distribution of sand used in building materials is analyzed by sieve analysis. Microtrac's CAMSIZER series can replace this time-consuming and error-prone technique with a quicker, more reliable method that provides a higher resolution of particle size results as well as additional particle shape information.

Building Materials - figura 1 — figura 1

Two types of sand taken from different locations, measured with the CAMSIZER X2. This sand is used as a layer in glass-reinforced plastic pipes to increase the stiffness. The reported size parameter is xc min (=particle width). The red curve is slightly bimodal. Sand with a wide size distribution can be more closely packed in the core of the pipe which gives the finished product a higher stability.

Building Materials - figura 2 — figura 2

One sand sample that was measured by sieving (black) and by the CAMSIZER X2 using two different dispersion modules: the X-Fall module (green) and the X-Jet module (red). The results compare extremely well, proving that CAMSIZER X2 can match existing sieve analysis results. Hence, product specifications based on sieve analysis can remain unchanged when transitioning to a CAMSIZER system.

Ejemplo 2 Particle size & shape analysis of limestone

Limestone (calcium carbonate) is a raw material used in many products.

Building Materials - figura 3 — figura 3

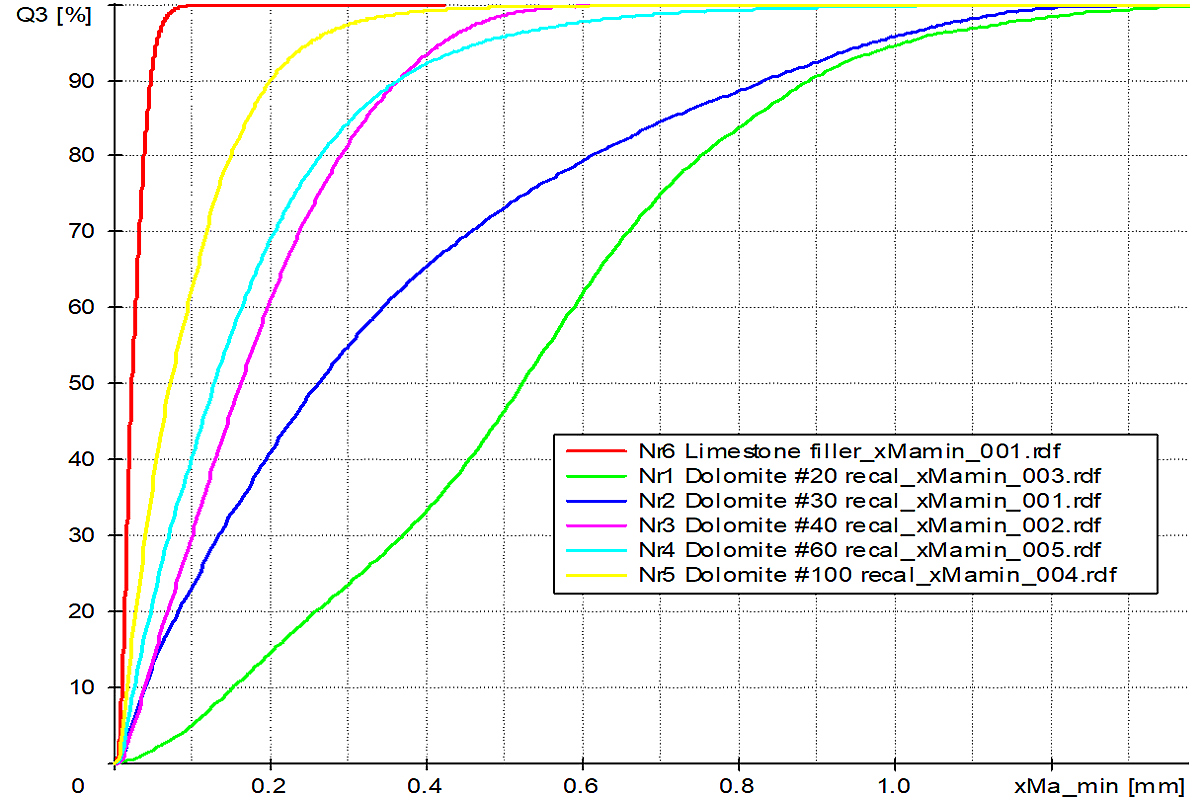

The particle size distribution as measured with the CAMSIZER X2 for a range of limestone grades.

The particle shape distribution results for the same collection of limestone samples. The reported shape parameter is sphericity, defined as: sphericity = 4 p A/ P2 where "A = Area of the particle projection" and "P = Perimeter length of the particle projection". The least round sample is Nr 6 (red), while the most round sample is Nr 4 (light blue).

Ejemplo 3 Effective dispersion of plaster samples

Typical result from a particle size analysis of a plaster sample. The size range is fairly wide, ranging from 2 microns to about 1 mm. The graph shows the result of the CAMSIZER X2 in X-Jet mode, measured with a dispersion pressure of 150 kPa (red curve).

The plaster particles are agglomerating and “sticky”, thus the results of a conventional sieve analysis shows much coarser data (black curve), especially for the fine particles. However, if the particles are dispersed properly with an air jet sieve (AS 200 jet, blue curve), the results agree perfectly with the CAMSIZER X2.

Building Materials - figura 5 — figura 5

Ejemplo 4 Detection of oversize in tile coatings

Save and reliable detection of oversized particles are among the most important objectives of particle size analyis. For this purpose, Dynamic Image Analysis with the CAMSIZER X2 is the most powerful technique with unmatched accuracy.

Figure 6 shows a silicate sample that was analyzed with the CAMSIZER X2 using the X-Fall module. First, the original sample was measured and the size distribution was found to range from 5 μm to 100 μm (red curve). Then, 0.1 % of oversized (> 100 μm) particles were added and the sample was analyzed again (green curve). Finally, the experiment was repeated with 1 % oversize added (blue curve).

This silicate is used as raw material for the coating of tiles and oversized particles will result in a rough and uneven surface of the finished tile. The CAMSIZER X2 reliably detects the correct amount of oversize. Note that below 100 μm, where all samples are identical, the reproducibility is excellent!

Building Materials - figura 6 — figura 6
